Injection quick-turn molding is a rapid manufacturing process designed to produce plastic parts quickly for prototyping, testing, or low-volume production. It is an accelerated version of traditional injection molding, focusing on reducing lead times and costs while maintaining high-quality output. This method is ideal for companies that need functional prototypes or small batches of parts in a short timeframe. Here’s a detailed explanation of how injection quick-turn molding works:

1. Design and Preparation

3D CAD Model: The process begins with a detailed 3D CAD (Computer-Aided Design) model of the part. This model is used to create the mold and simulate the molding process.

Material Selection: Choose the appropriate plastic material based on the part’s intended use (e.g., ABS, polycarbonate, or nylon).

Prototype Requirements: Define the purpose of the quick-turn parts (e.g., functional testing, market validation, or small-batch production).

2. Rapid Mold Creation

Mold Material: Quick-turn molds are typically made from aluminum or soft steel, which are easier and faster to machine than traditional hardened steel molds.

Simplified Design: The mold is designed with simplified features to reduce cost and lead time. It may lack some of the complex cooling channels or ejector systems found in production molds.

Rapid Tooling: The mold is created using CNC machining or other rapid tooling techniques, significantly reducing the time required compared to traditional mold-making.

3. Injection Molding Process

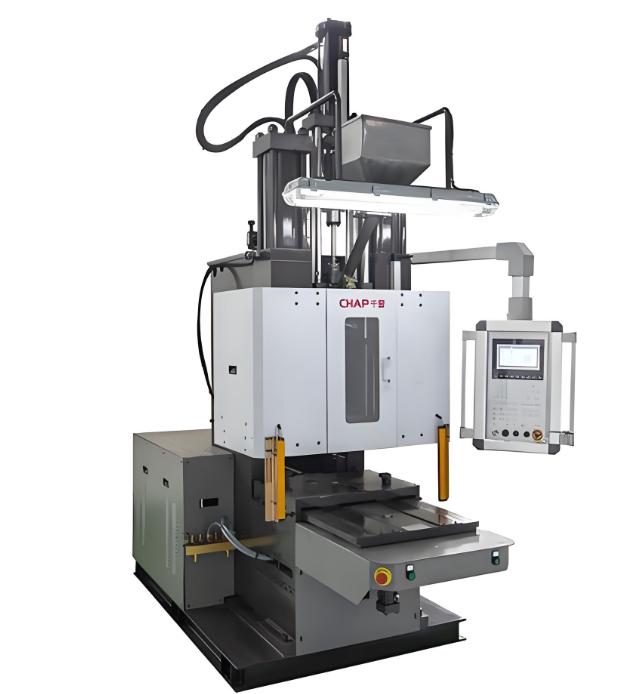

Material Preparation: Plastic pellets are fed into the injection molding machine and melted.

Injection: The molten plastic is injected into the quick-turn mold under high pressure.

Cooling: The plastic cools and solidifies in the mold, taking the shape of the part.

Ejection: The finished part is ejected from the mold.

4. Post-Processing

Trimming and Finishing: Remove any excess material (e.g., sprues or flash) and perform surface finishing (e.g., sanding or painting) if needed.

Testing and Validation: Test the parts for functionality, durability, and performance to ensure they meet design requirements.

5.Key Features of Injection Quick-Turn Molding

Fast Turnaround:

Delivers parts in as little as 1–2 weeks, compared to several months for traditional production tooling.

Cost-Effective Tooling:

Uses aluminum or soft steel molds, which are cheaper and faster to produce than traditional steel molds.

Low-to-Medium Volume Production:

Ideal for producing small batches of parts (typically 10–1,000 units) for testing or market validation.

Material Flexibility:

Compatible with a wide range of thermoplastics, allowing for material testing and validation.

Near-Production Quality:

Produces parts that closely resemble final production parts in terms of material properties, surface finish, and dimensional accuracy.

Advantages of Injection Quick-Turn Molding

Reduced Lead Times:

Enables rapid prototyping and small-batch production, accelerating product development.

Cost Savings:

Reduces the upfront cost of tooling compared to full-scale production molds.

Design Validation:

Allows for testing and refinement of part designs before committing to expensive production tooling.

Material Testing:

Provides an opportunity to test different materials and their performance in real-world conditions.

Market Validation:

Enables the production of small batches for market testing or early customer feedback.

Risk Reduction:

Identifies potential design or manufacturing issues early in the development process.

6.Applications of Injection Quick-Turn Molding

Consumer Products:

Prototyping and small-batch production of household items, electronics, and toys.

Automotive:

Testing of interior and exterior components, such as dashboards and trim pieces.

Medical Devices:

Prototyping and validation of surgical tools, implants, and diagnostic equipment.

Aerospace:

Testing of lightweight components and structural parts.

Industrial Equipment:

Prototyping and small-batch production of machinery components and enclosures.
