Micro Molding is a specialized injection molding process used to produce extremely small and precise plastic parts. These parts typically have intricate details, high tolerances, and small dimensions, often in the range of micrometers (μm) to millimeters (mm). Micro molding is used in industries where very tiny components are required, such as in medical devices, electronics, aerospace, and consumer products.

Here's a step-by-step overview of how Plastic Micro Molding works:

1. Material Selection:

Micro molding requires the use of specific materials that can flow smoothly into very small cavities and retain their shape and mechanical properties after cooling.

Common materials include medical-grade plastics (like polycarbonate, POM, polystyrene, PEEK, and nylon) and high-performance engineering plastics. These materials are chosen based on factors like strength, flexibility, durability, and biocompatibility (especially for medical applications).

2. Design and Mold Preparation:

Part Design: The part must be designed with precision in mind. The design typically involves computer-aided design (CAD) software to create highly detailed and complex geometries, as well as micro features such as tiny holes, channels, or intricate surface textures.

Mold Design: The mold design for micro molding is crucial because the molds need to accommodate the tiny details of the part. Molds used in micro molding are often made from high-quality hardened steel or beryllium copper to ensure durability and precision. Micro-machining techniques such as EDM (electrical discharge machining) or laser engraving are often used to create the fine features in the mold.

Micro Molding Tools: Specialized tools and equipment are used to create the mold cavities. These tools include high-precision injection molding machines, micro-sized nozzles, and precision screws.

3. Injection Molding Process:

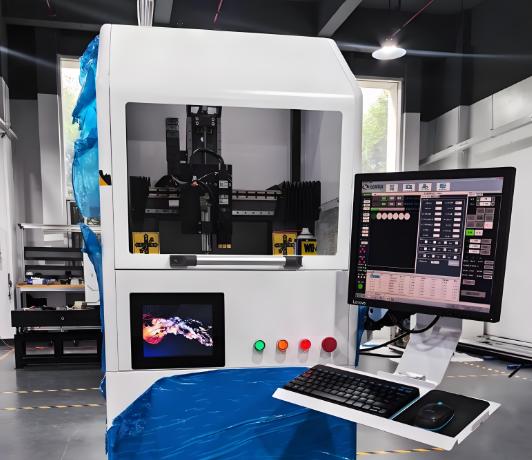

Injection Unit: In micro molding, the injection molding machine is typically designed to handle very small quantities of material and to inject it at extremely high pressure, which is essential for filling micro cavities precisely. The screw inside the injection unit may have a very fine pitch, allowing it to feed small amounts of material with great precision.

Plastic Injection: The micro-sized plastic pellets or granules are heated until they melt and become a viscous, flowable liquid. The melted plastic is then injected into the mold at a high pressure (up to several thousand psi). Because the molds are so small, the injection speed must be fast to ensure the material fills the mold cavities quickly before it starts to solidify.

4. Mold Filling and Cooling:

Filling the Mold: The molten plastic is injected into the tiny mold cavities. The key challenge here is to ensure that the plastic fully fills the cavity without causing defects like short shots (where the cavity is not completely filled), warping, or flash (excess material at the edges).

Precision Cooling: Once the mold is filled, the cooling phase begins. The cooling process is crucial in micro molding because rapid cooling and solidification are required to maintain the intricate details of the part. The mold typically has micro-cooling channels to allow for the controlled temperature regulation.

The cooling time is shorter for smaller parts, but it is still important to allow enough time for the plastic to solidify and retain its shape. The cooling rate is carefully controlled to minimize warpage or shrinkage of the part.

5. Ejection and Removal:

After the part has cooled and solidified, the mold is opened. Ejector pins or specialized ejection mechanisms are used to remove the tiny part from the mold without causing any damage. The ejection mechanism must be gentle enough to avoid deforming the delicate features of the micro-molded part.

6. Post-Processing and Inspection:

Trimming: In some cases, the molded part may have excess material, such as flash, which must be trimmed or removed.

Inspection: Since micro molding involves very small tolerances and fine details, parts are usually subjected to rigorous inspection. This may involve using scanning electron microscopes (SEM) or other high-precision measuring tools to inspect the part for accuracy in dimensions, surface finish, and integrity of micro features.

Assembly: Some parts may be assembled into larger systems or further processed before they are shipped. This can include sterilization (for medical applications), coating, or integrating them with other components.

7.Key Characteristics of Plastic Micro Molding:

Small and Precise Parts: Micro molding is ideal for producing parts that are smaller than 10 mm in size and require intricate features, such as holes, threads, and textured surfaces.

High Tolerances: The parts produced must adhere to very tight dimensional tolerances, often in the micrometer range (sub-millimeter accuracy).

Micro Features: The process enables the creation of detailed micro-features such as channels, small holes, micro-threading, and fine surface textures that cannot be achieved with traditional molding methods.

High Production Volume: Once the mold is created, micro molding can be used to produce parts in high volumes with consistent quality.

8.Advantages of Plastic Micro Molding:

Precision: Micro molding allows for the production of parts with extremely fine details, tight tolerances, and complex geometries.

Mass Production: Despite the small size, the process can be scaled for high-volume production of tiny parts.

Material Versatility: A wide range of materials can be used, including biocompatible plastics, which makes the process ideal for medical and healthcare applications.

Reduced Waste: Since micro molding is a precise process, it generates very little waste compared to other manufacturing methods.

High Efficiency: The process is quick, and once molds are made, it can be highly efficient and cost-effective for large-scale production.

9.Applications of Plastic Micro Molding:

Medical Devices: Micro molding is commonly used to produce components like catheters, micro-syringes, implantable devices, test tubes, valves, and drug delivery systems.

Electronics: Tiny connectors, sensors, micro-switches, microchips, and other components in electronic devices such as smartphones and wearables.

Aerospace: Micro parts like seals, fasteners, and precision components used in aircraft and satellite systems.

Consumer Products: Small components used in products like wearable devices, toys, and optical lenses.

Automotive: Micro components such as precision sensors, micro switches, and actuators for automotive applications.
